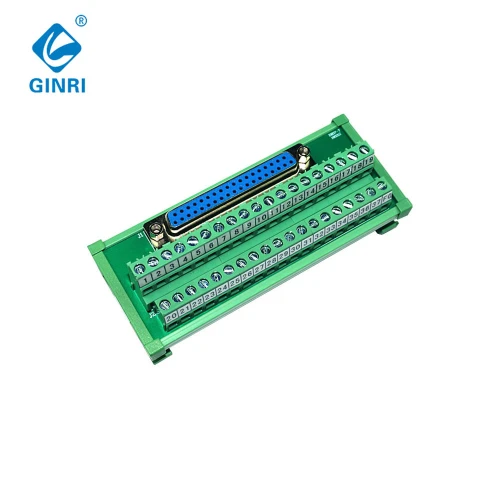

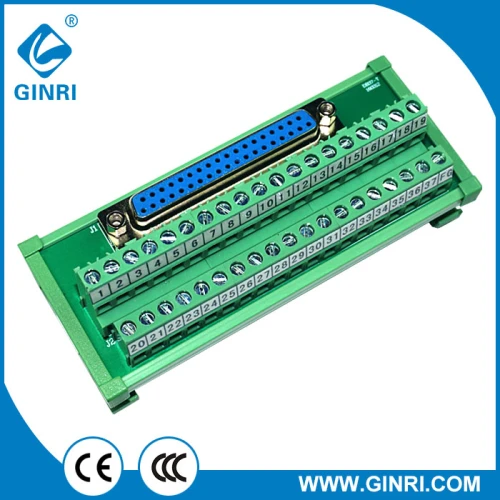

GINRI 37 pin D-SUB connectors Interface Module JR-37TDC D-subminiature Terminal Block DC24V

Group Ginri Interface Breakout Relay Module DC24V Din Rail Amount
PriceUS $7.4-7.46 / piece
Min. Order 1 piece
Terms of Payment L/C, Western Union, T/T, Paypal
Update Time 2020-09-18
Item specifics
Rated current1A
Rated voltageDC24V,AC125V
  • Description
  • Product review

Connector-Terminal Block Conversion Units

JR-37TDC



♦ Features

  -- Support most of PLC output interface

  -- Standard DIN rain mounted

  -- High quality connectors with excellent stability

  -- Models available with Phillips screw, slotted screw

  -- Greatly savings in wiring and wiring Work

 -- Easy for inspection and maintenance

  -- Compact slim 49mm width



♦ Typical Applications

    • Micro-controller     • PLC control  • Servo System

    • Electro-magnetic valve   • DC Motors  • CNC machine

    • Home intelligent control



♦ Technical data

Model

JR-37TDC

Connector type

D-Sub

I/O poles

37

Wiring method

Euro terminal (slotted screws)

*Japanese terminal (Phillips screws) can be customized

Rated current

1A

Rated voltage

DC24V

Insuration resistance

100MΩ  min. (at 500VDC)

Dielectric strength

500VAC 1min

Ambient operating temperature

-20~+55

Applicable wires

AWG 22-16(0.3~1.25mm2),6~7mm

Suitable Uses

PLC,IPC I/O and axis controller conversion

Dimensions(LxWxH)

114×49×44mm

Mounting

DIN rail









































♦ Wiring Diagram






* Please contact us for further information.

GINRI Selection Gu

♦ GINRI Selection Guide

 relay list.jpg


♦ GINRI Packing



♦ GINRI Relay Family Photo






Ginri JVR1000 3 Phase Voltage Monitoring Relay LCD Display Motor Voltage Protection Relay With Multi Protective Function



FAQ

Q1. What advantages do you have?

A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5.  It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. How could I get your sample?

A7. You can request sample purchse through our alibaba trade assurance service.
