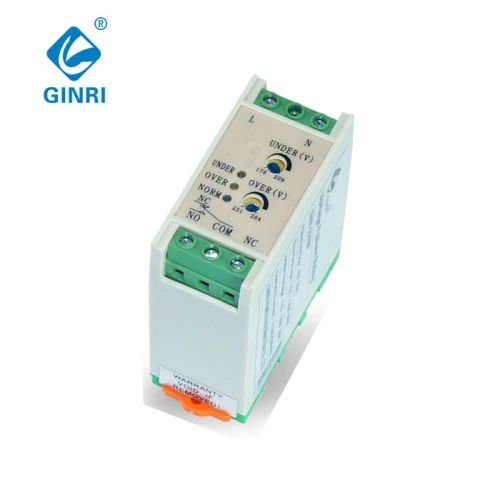

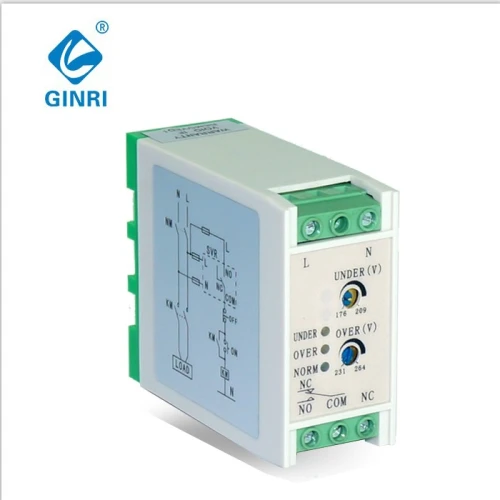

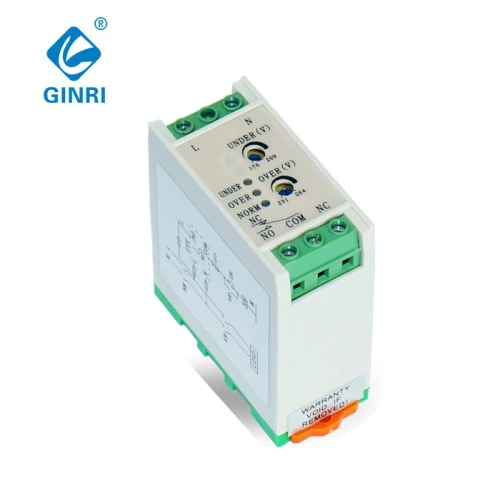

Ginri 3A 220V SVR-220W Single Phase Voltage Protector Over Under Voltage Relay Adjustable
Ginri 3A 220V SVR-220W Single Phase Voltage Protector  Over Under Voltage Relay Adjustable
Ginri 3A 220V SVR-220W Single Phase Voltage Protector  Over Under Voltage Relay Adjustable
Ginri 3A 220V SVR-220W Single Phase Voltage Protector  Over Under Voltage Relay Adjustable
Ginri 3A 220V SVR-220W Single Phase Voltage Protector  Over Under Voltage Relay Adjustable
Price
US $8.4-9.51
Model
SVR-220W
MOQ
1 piece

Item specifics

Rated voltage
110VAC,220VAC 240VAC,250VAC,50/60Hz
Output contacts
1 C/O
Contact capacity
3A,250VAC
Degree of protection
IP 20

Review

Description

Ginri 3A 220V SVR-220W Single Phase Voltage Protector  Over Under Voltage Relay Adjustable

SVRW-220 /SVRW-110 /SVRW-240





♦ Features

  -- Single-phase monitoring of over- and undervoltage

  -- Adjustable over and undervoltage threshold

  -- Powered by the measuring circuit

  -- 1 C/O contact

  -- 3 LEDs for status indication



♦ Protective Functions

  -- Overvoltage

  -- Undervoltage



♦ Typical Applications

     Pumps      Fans

     Blowers    • Motors

    • Compressors



♦ Approvals

     CE    CCC





♦ Technical data



Type

SVR-220W

Measuring circuit

L,N

Rated voltage

110VAC,220VAC ,440VAC

240VAV,250VAC,50/60Hz

Monitoring functions

overvolatege, undervoltage

Voltage setting range

±5%~±20%

Indicators

overvolatege, undervoltage, and normal

Output contacts

1 C/O

Contact capacity

3A ,250VAC

Dimensions (H x W x D)

68×30×76mm

Mounting

DIN rail





♦ Wiring Diagram



SVR-220W WD.png







GINRI Selection Gu

♦ GINRI Selection Guide

relay list.jpg



♦ GINRI Packing



♦ GINRI Relay Family Photo









FAQ
Q1. What advantages do you have?

A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. How could I get your sample?

A7. You can request sample purchse through our alibaba trade assurance service.
